From the Perspective of Triazine Chemistry: Why Nitrogen-Based Flame Retardants Prefer Triazine
Many people have a question when first coming into contact with nitrogen-containing flame retardants:
Since flame retardancy requires "nitrogen", why does the industry ultimately opt massively for the "triazine ring" structure, rather than simpler amines, urea, guanidine salts, or even ordinary amides?
If the only goal were to release nitrogen gas, theoretically many nitrogen-containing structures could achieve this.
But the real issue is:
Flame retardancy is not as simple as "releasing some gas". Instead, it requires sustained regulation of the material’s energy flow, free radicals, char layer structure, and thermal degradation pathways at high temperatures.
The triazine ring happens to be one of the few known nitrogen-containing structures capable of simultaneously fulfilling the following five mechanisms:
High nitrogen densityHigh thermal stabilityControllable endothermic decompositionIn-situ polycondensation and network formationDeep synergistic effect with phosphorus systems
This is why from the most traditional melamine, to MPP, MCA, CFA, DOPO-triazine, and further to modern halogen-free IFR systems, almost all are inseparable from "triazine chemistry".
01 The Essence of the Problem: Why Ordinary Nitrogen-Containing Structures Are Not Good Enough

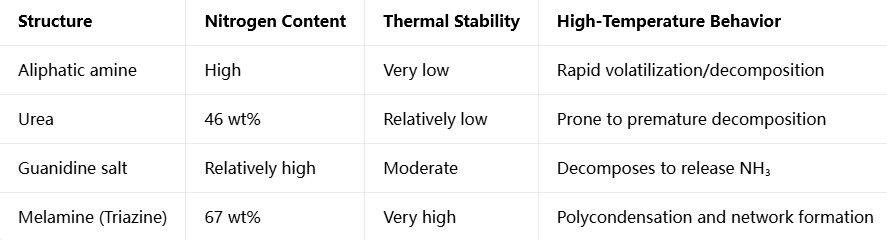

First, let’s look at several typical nitrogen-containing structures:
The real difference lies in whether the molecular structure can "survive" the polymer degradation temperature window to "function" after high-temperature exposure.
Many ordinary nitrogen-containing structures completely decompose and volatilize at 250–320°C. But the triazine ring does not.
02 What Makes the Triazine Ring Truly Special: It Doesn’t Just
"Decompose" — It "Polycondenses"

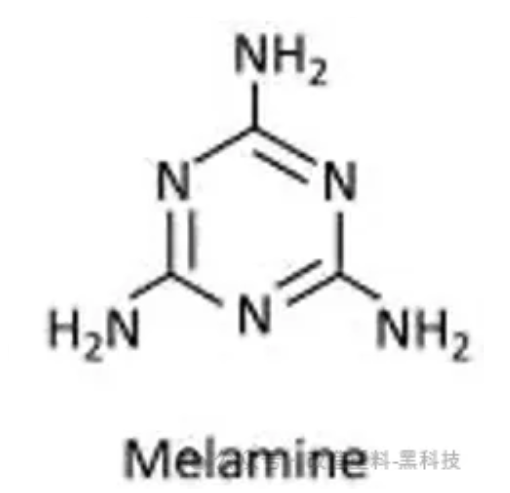

The triazine ring (1,3,5-triazine) is a highly electron-deficient aromatic C-N six-membered ring.
03 The Core Capability of Triazine Flame Retardants: "N-C Network"
Many people's understanding of melamine flame retardancy only stays at:
"Releasing NH₃ to dilute oxygen"
In fact, this only explains a very small part.
What truly determines the flame retardant efficiency is the subsequent condensed phase chemistry.
Stage 1: Heat absorption + release of inert gas
Melamine begins to sublime and decompose at approximately 320–350°C:
Latent heat of sublimation: about 120 kJ/mol
Total heat absorption during pyrolysis: nearly 2000 kJ/mol
Meanwhile, it releases ➡︎ NH₃, N₂, and a small amount of cyano fragments...
These gases serve to ➡︎ dilute oxygen, dilute combustible volatiles, and lower flame temperature...
This is the well-known gas-phase flame retardant mechanism. However, this is not the most critical step.

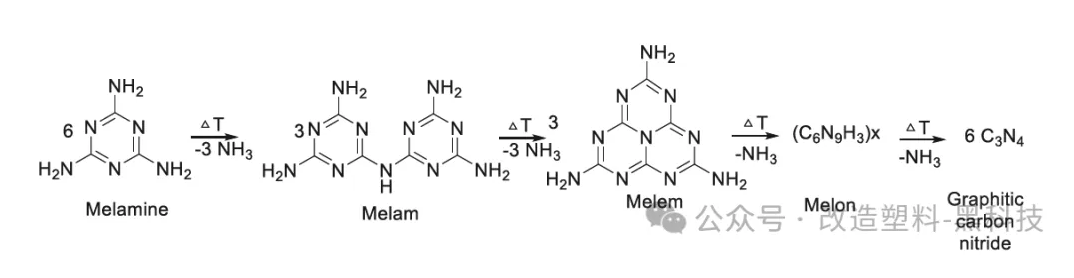

Stage 2: Polycondensation to form a "carbon nitride network"
The triazine structure does not completely break down. Instead, it further undergoes ➡︎ deamination, polycondensation, aromatization, and layered crosslinking.
It ultimately forms a highly stable carbon nitride structure similar to graphitic carbon nitride (g-C₃N₄).
This means:
✅ A nitrogen-rich, aromatic ring-rich, high crosslinking density char layer is formed on the material surface.
04 Why is the Triazine Char Layer Exceptionally Strong?
Char formed by common polyolefins: loose and easy to crack

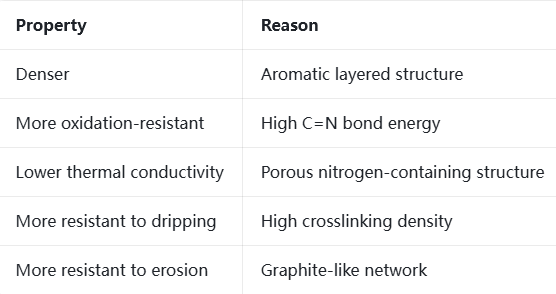

But the char layer formed by the triazine system:
Therefore, what many triazine-containing IFR systems truly improve is not "being non-flammable", but pHRR (peak heat release rate).
It is one of the most critical parameters in cone calorimetry. This feature can derive a wide variety of different flame retardant products!!
05 Why are Triazine and Phosphorus Used in Combination?
Because the two are naturally complementary:
What is triazine responsible for? It is responsible for heat absorption, gas release, network formation and improving char layer strength.
What is phosphorus responsible for? It is responsible for catalytic dehydration, advanced char formation and reducing pyrolysis activation energy.
Thus, "P-N synergy" has become the core route of modern halogen-free flame retardants.
06 Why is MPP Stronger than MP?
This is a very typical "triazine design logic".
MP (Melamine Phosphate)
Essence: Melamine + Phosphoric acid
Char residue yield (700°C): approximately 30%
MPP (Melamine Polyphosphate)
Structure: P-N network with higher degree of polymerization
Characteristics: slower phosphorus volatilization + longer duration of acid source + more sufficient triazine polycondensation
Therefore, the char residue yield at 700°C can reach about 40%. This value is already extremely high for organic systems.
Especially in PA, PBT and TPEE, the core value of MPP is not only reflected in UL94 performance, but also in:
Reducing dripping
Strengthening the char layer
Improving the stability of GWIT/GWFI
07 Why is the Efficiency of DOPO-Triazine System Extremely Outstanding?
Because it achieves the covalent coupling of gas-phase radical inhibition and condensed-phase network formation for the first time.
Traditional DOPO: strong gas-phase performance, yet:
The char layer is not rigid enough
Prone to burnout in the later stage of combustion
Traditional triazine: excellent char layer performance, yet:
Limited capability to capture free radicals
Hence, researchers designed a structure with triazine as the central skeleton, further grafting:
DOPO
Phosphite
Phosphonate
Benzimidazole
to form a "dual-functional directional flame retardant".
08 Why Does Triazine Almost Dominate Halogen-Free
Nitrogen-Based Flame Retardants?

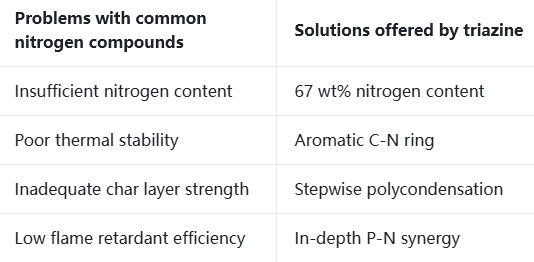

Because it solves four problems simultaneously:
More importantly, it does not rely on a single mechanism. Instead, it is a continuously "evolving" high-temperature reaction process.
09 The Real Key Point: Triazine is Not Just an "Additive", but a "Thermochemical Skeleton"
Most people’s understanding of flame retardants still remains at simply "adding one type of flame retardant".
However, experienced professionals no longer design flame retardant formulations in this way.
Essentially, high-level flame retardant design is the design of:
Pyrolysis pathway
Char layer chemistry
Free radical migration
Energy dissipation mode
The greatest value of the triazine ring lies in its "stable aromatic nitrogen-carbon network" structure.
If you are engaged in the development of the following fields:
Flame retardant modification of PA / PBT / PET / PC
Halogen-free UL94 V0 / 5VA rating
GWIT / CTI / Glow-wire performance
High-temperature nylon
PFAS-free flame retardant systems
Thin-wall electrical and electronic materials
You will clearly realize that many formulation challenges ultimately depend not on the formula itself, but on the in-depth understanding of the flame retardant structure.
