01. Introduction: When One Delaminated Panel Leads to Massive Losses

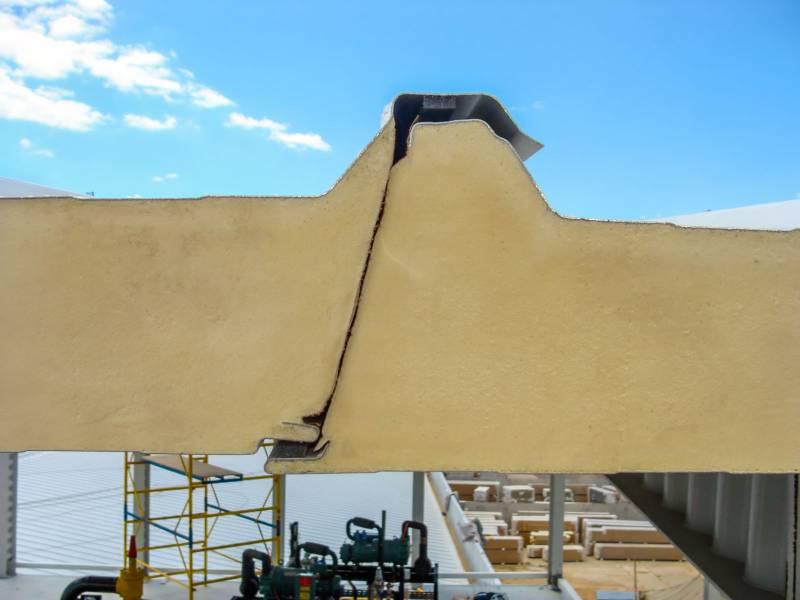

In the production workshop of a large building materials manufacturer, newly produced metal-faced polyurethane sandwich panels were neatly stacked after leaving the continuous production line. During a routine inspection, a quality control engineer lifted one of the panels and discovered that the metal facing separated from the foam core as easily as peeling off a sticker.

The result? An entire batch of panels worth hundreds of thousands of dollars was scrapped.

This was not a simple production mistake. It was a systemic failure caused by an often-overlooked issue in polyurethane panel manufacturing.

As the industry transitions from HCFC-141b blowing agents to environmentally friendly pentane-based systems, manufacturers using customized polyurethane systems are increasingly encountering challenges such as reduced bonding strength, panel shrinkage, foam brittleness, and dimensional instability.

Why do formulations that performed perfectly in HCFC-141b systems often fail after switching to pentane? What is the real root cause of bonding failure?

This article provides an in-depth analysis of how each component in a pentane-blown polyurethane formulation influences panel adhesion and offers practical optimization strategies for production engineers and formulation specialists.

If you are responsible for continuous panel production or polyurethane system formulation, this guide is designed specifically for you.

02. Problem Identification: What Exactly Changes When Pentane Is Introduced?

2.1 The Fundamental Principle of Panel Bonding

The bonding performance of continuous polyurethane sandwich panels depends on both chemical adhesion and mechanical interlocking between the foam core and the facing material, whether it is steel, fiberglass, aluminum, or paper.

Ideally, the reacting polyurethane mixture thoroughly wets the panel surface before gelation begins. As crosslinking progresses, the foam becomes firmly anchored to the substrate through both chemical interactions and physical locking mechanisms.

2.2 The Side Effects of Pentane

Compared with HCFC-141b, pentane-based systems introduce several significant challenges:

Challenge	Description	Impact on Bonding
Solubility Difference	Pentane has poorer compatibility with polyether and polyester polyols.	Higher initial viscosity reduces flowability, limiting surface wetting before gelation.
Evaporative Cooling	Pentane absorbs a large amount of heat during vaporization.	Lower reaction temperature slows curing and weakens surface adhesion development.
Cell Structure Changes	Pentane systems tend to produce finer cells and higher closed-cell content.	Smoother foam surfaces reduce mechanical interlocking with facings.

03. Formulation Analysis: Seven Key Factors Affecting Bonding Performance

Based on research data from leading polyurethane panel manufacturers, the following formulation variables have the greatest influence on adhesion performance.

3.1 Polyester and Polyether Polyols: The Foundation of Adhesion

Polyester polyols contribute significantly to bonding strength due to their polar ester groups, which can interact strongly with metal surfaces through hydrogen bonding.

However, different polyester structures affect foam growth behavior and final panel properties differently.

High-Reactivity Polyester Polyols

• Excellent adhesion performance
• Poor flowability
• Increased risk of surface defects

Low-Functionality Polyester Polyols

• Improved flowability
• Reduced crosslink density
• Lower bonding strength

Optimization Recommendation

A balanced polyester/polyether polyol blend is often the best solution, especially when designing rigid polyurethane formulations for continuous panel production.

Polyether polyols significantly improve formulation flowability, allowing the reacting mixture to spread and wet the panel surface more effectively before gelation occurs.

3.2 Water: The Most Underestimated Double-Edged Sword

Water reacts with isocyanate to generate carbon dioxide and polyurea structures.

In pentane systems, water concentration becomes particularly critical.

Excess Water Can Cause:

• Rapid exothermic reactions
• Premature surface curing
• Uneven reaction rates between the panel surface and foam core
• Internal stress accumulation
• Increased risk of bond failure

Research Findings

Reducing water content appropriately can:

• Improve panel adhesion
• Increase final panel thickness stability
• Enhance compressive strength in the foam rise direction

3.3 Catalysts: Managing the Critical Processing Window

Continuous panel production lines typically operate at speeds between 6 and 12 meters per minute.

Catalyst selection determines the balance between flow time and cure speed.

Excessively Strong Gel Catalysts

• Rapid viscosity buildup
• Reduced substrate wetting capability
• Poor interfacial adhesion

Excessively Strong PIR Catalysts

• Increased foam brittleness
• Higher likelihood of interfacial delamination
• Cohesive failure within the foam structure

Key Finding

Using milder PIR catalysts or delayed-action polyurethane amine catalysts can improve formulation flowability.

• Improve formulation flowability
• Increase foam core thickness
• Maintain overall foam mechanical strength

3.4 Flame Retardants: The Hidden Enemy of Adhesion

Liquid flame retardants such as TCPP and TCEP are widely used to meet fire performance requirements.

However, these additives also act as plasticizers and may reduce foam cohesive strength.

Research Observations

Lower flame retardant loading often leads to improved bonding performance.

Recommended Approach

To achieve a balance between fire resistance and adhesion:

• Use the minimum flame retardant dosage required to meet standards
• Consider using reactive flame retardants where possible to maintain fire performance while minimizing adverse effects on adhesion
• Maintain compliance with fire classifications while minimizing negative effects on mechanical properties

3.5 Isocyanate Index (NCO Index)

The isocyanate index has a direct influence on crosslink density and dimensional stability.

Low NCO Index (<1.05)

• Insufficient crosslinking
• Poor mechanical strength
• Reduced adhesion performance

High NCO Index (1.10–1.15)

• Improved rigidity
• Better dimensional stability
• Higher risk of foam brittleness if excessive

Practical Recommendation

A moderate increase in NCO index can help prevent panel shrinkage, particularly when combined with proper post-curing conditions.

3.6 Silicone Surfactants

Silicone surfactants designed specifically for pentane systems must carefully balance cell opening and cell closure.

Excessively Closed Cells

• Increased shrinkage risk

Excessively Open Cells

• Reduced foam strength

Proper surfactant selection can create a slightly textured foam surface, enhancing mechanical interlocking between the foam core and the panel facing.

3.7 Facing Surface Preparation

When formulation optimization reaches its limit and adhesion problems persist, the root cause may lie in the panel surface itself.

Common Surface Contaminants

• Rolling oils
• Surface oxidation layers
• Dust and processing residues

Effective Solutions

Primer Application

Applying a primer based on modified isocyanates or hot-melt technology can create a highly effective transition layer between the foam and substrate.

Mechanical Surface Treatment

Micro-perforation or roughening techniques can increase surface area and improve mechanical anchoring.

04. Practical Troubleshooting Guide: Adjustment Priorities

When bonding issues occur, the following optimization sequence is recommended:

Priority	Adjustment Direction	Recommended Action	Expected Benefit
1	Reduce Water Content	Gradually decrease water dosage.	Minimize premature surface curing and improve adhesion.
2	Introduce Polyether Polyol	Add 10–20% high-flow polyether polyol.	Improve substrate wetting and flowability.
3	Optimize Catalyst Package	Use delayed-action gel catalysts or milder PIR catalysts.	Extend processing window and improve bonding.
4	Apply Primer	Implement online primer coating on metal facings.	Rapid adhesion improvement, often exceeding 50%.
5	Increase NCO Index	Increase from approximately 1.05 to 1.10.	Enhance crosslink density and dimensional stability.

05. Conclusion

Bonding challenges in pentane-blown polyurethane sandwich panels are fundamentally a competition between reaction speed and available flow time.

Every component of the formulation plays a critical role, from polyols and catalysts to flame retardants and complete polyurethane system solutions.—from the polarity of polyols and the precise control of water content to catalyst selection and reaction management.

As global environmental regulations continue to tighten, including ongoing updates to F-gas regulations, the use of pentane and pentane-blend blowing agent systems will continue to expand throughout the polyurethane panel industry.

Manufacturers who understand and master these formulation principles today will be better positioned to lead the next generation of sustainable, high-performance insulated panel production.

By applying the optimization strategies outlined in this article, producers can significantly improve bonding performance, reduce production losses, and gain a competitive advantage in the rapidly growing green building materials market.
