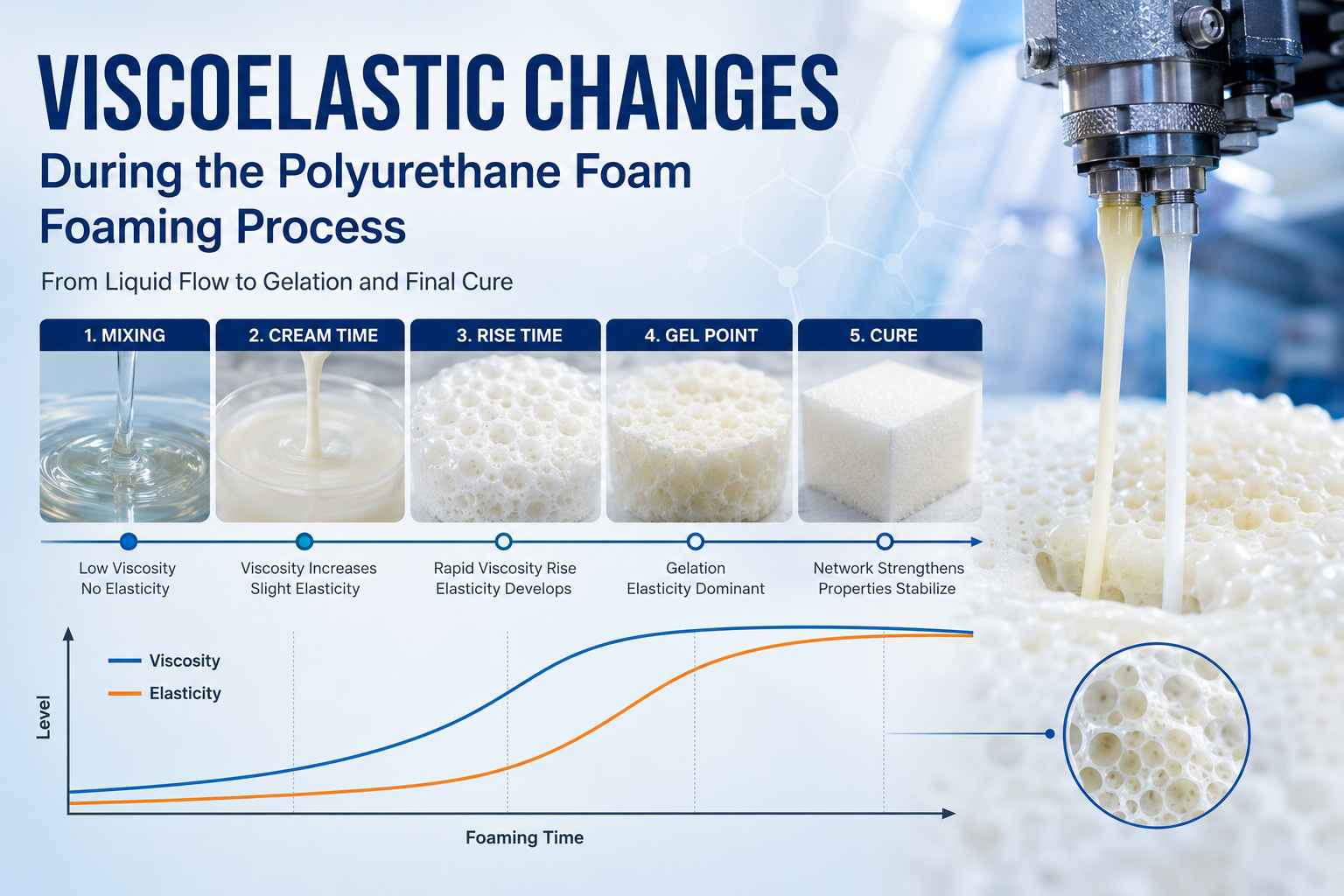

The following sections explain the viscoelastic evolution of polyurethane foam stage by stage, combining reaction mechanisms, observable phenomena, and practical production considerations.

1. Basic Concepts

1. Viscosity

Viscosity represents the resistance of a material to flow and reflects its viscous behavior. Higher viscosity means poorer flowability.

2. Elasticity

Elasticity refers to a material's ability to recover its original shape after deformation. Greater elasticity provides better resistance to deformation and foam collapse.

3. Gel Point

The gel point is the critical transition at which the system changes from a flowable liquid to a non-flowable solid network. It is the most important dividing point in the foaming process.

4. Overall Trend

Throughout foaming, viscosity continuously increases, while elasticity develops gradually from very weak to dominant. After gelation, elasticity becomes the governing characteristic of the system.

2. Viscoelastic Evolution by Foaming Stage

Stage 1: Initial Mixing Stage (Induction Period Before Cream Time)

State

Polyol, isocyanate, and additives have just been mixed. Chemical reactions proceed slowly, gas generation is minimal, and the system remains a homogeneous liquid.

Viscoelastic Characteristics

• Low viscosity and excellent flowability.
• Virtually no elasticity.
• Under external force, the material flows freely and deformation is irreversible.

Cause of Change

Molecular chains have not yet formed significant crosslinks. The NCO–OH reaction rate remains low, and no polymer network has been established.

Production Observation

The mixture appears transparent or only slightly milky and flows freely.

Stage 2: Cream Stage (Foaming Initiation)

State

Reaction rates accelerate. Water reacts with isocyanate to generate significant amounts of CO₂. The system turns white, small bubbles appear, and initial expansion begins.

Viscoelastic Characteristics

• Viscosity increases rapidly as oligomers and longer molecular chains form.
• Weak elasticity begins to appear due to the formation of preliminary chain associations.
• The system remains predominantly viscous and continues to flow and stretch.

Key Feature

Bubbles continuously form and grow. The system relies primarily on its viscosity to encapsulate gas bubbles and prevent gas escape.

Stage 3: Rise Stage (Intensive Foaming Period Before Gelation)

State

Reaction rates reach their peak. Large quantities of gas are generated, foam volume expands rapidly, and cells grow quickly. This is the most critical stage for foam formation.

Viscoelastic Characteristics

• Viscosity continues to increase sharply.
• Flowability decreases significantly.
• Crosslinking reactions intensify, causing elasticity to increase rapidly.
• Viscoelastic behavior becomes more pronounced, gradually shifting toward elastic dominance.
• The material develops tensile strength and resistance to collapse.

When stretched, the foam deforms but partially recovers once the force is removed. Growing bubbles remain effectively stabilized within the matrix.

Process Implications

• If elasticity is insufficient and viscosity dominates, bubbles may rupture, merge, or collapse.
• If elasticity develops too early or too strongly, foam expansion is restricted, resulting in higher final density.

Stage 4: Gel Point (Critical Transition Stage)

State

A three-dimensional crosslinked network is essentially established. Foaming and gelation reach a balance, making this the most critical point in the entire process.

Viscoelastic Transformation

• The system loses its ability to flow.
• Apparent viscosity approaches infinity.
• Elasticity becomes the dominant property.
• Deformation becomes primarily elastic, with rapid recovery after compression or stretching.
• Cell structures become permanently fixed as cell walls solidify.

Production Significance

• Gelation occurring too early can lead to incomplete expansion and high foam density.
• Gelation occurring too late can result in gas loss, foam shrinkage, and collapse.

Stage 5: Curing and Maturation Stage (Post-Gelation)

State

Remaining reactive groups continue to react, further strengthening the crosslinked network. Foam expansion ceases, and the material gradually hardens.

Viscoelastic Characteristics

• Crosslink density continues to increase.
• Rigidity gradually rises.
• Elasticity stabilizes.

For flexible foam:

• High elasticity is retained.
• Good resilience and toughness are maintained.

For rigid foam:

• Elasticity decreases.
• The material transitions toward a rigid solid state.
• Deformation becomes more plastic than elastic.

Residual internal stresses exist initially but are gradually released during curing, allowing viscoelastic properties to stabilize.

Subsequent Changes

After sufficient curing at ambient conditions, crosslinking becomes essentially complete, and mechanical and viscoelastic properties remain relatively stable.

3. Key Factors Affecting Viscoelastic Behavior

1. Catalysts (The Most Critical Control Factor)

Blowing Catalysts

• Accelerate gas generation.
• Promote earlier viscosity development.
• Make foam expansion proceed more rapidly.

Gel Catalysts

• Accelerate crosslinking reactions.
• Establish the elastic network sooner.
• Shorten gel time.

Catalyst Imbalance

Improper balance between blowing and gel catalysts disrupts the foaming-gelation match, distorts the viscoelastic profile, and may cause foam collapse, shrinkage, or coarse cell structures.

2. Raw Material Temperature

Higher Temperature

• Accelerates overall reaction rates.
• Increases the rates of viscosity and elasticity development.
• Causes earlier gelation.

Lower Temperature

• Slows reaction rates.
• Produces a more gradual increase in viscoelastic properties.
• Delays gelation and increases the risk of gas loss.

3. NCO Index (Isocyanate Index)

High NCO Index

• Promotes stronger crosslinking.
• Increases elasticity and rigidity more rapidly.
• Produces a more brittle foam.

Low NCO Index

• Results in insufficient crosslinking.
• Leads to weaker elasticity and higher residual viscosity.
• Produces softer foam with greater deformation and poorer recovery.

4. Surfactants and Fillers

Silicone Surfactants

• Improve interfacial tension control.
• Promote uniform viscoelastic distribution throughout the foam.
• Prevent uneven cell structures caused by localized viscosity or elasticity differences.

Inorganic Fillers

• Increase initial system viscosity.
• Reduce elasticity.
• Make the foam structure stiffer overall.

5. Polyol Structure

High-Functionality Polyols

• Form dense crosslinked networks more easily.
• Increase elasticity and rigidity rapidly.

High-Molecular-Weight, Long-Chain Polyols

• Produce a more gradual crosslinking process.
• Generate softer elastic behavior.
• Maintain viscosity for a longer period.
• Are characteristic of flexible foam formulations.

4. Summary: Overall Viscoelastic Trend Throughout Foaming

In essence, the entire foaming process is a rheological transformation in which the system evolves from a purely viscous liquid into a three-dimensional crosslinked elastomeric network.

The balance between foam expansion and gelation, as reflected by the changing viscoelastic properties of the system, directly determines the final foam structure, dimensional stability, and overall product quality.
