Why These Defects Keep Reappearing in Production

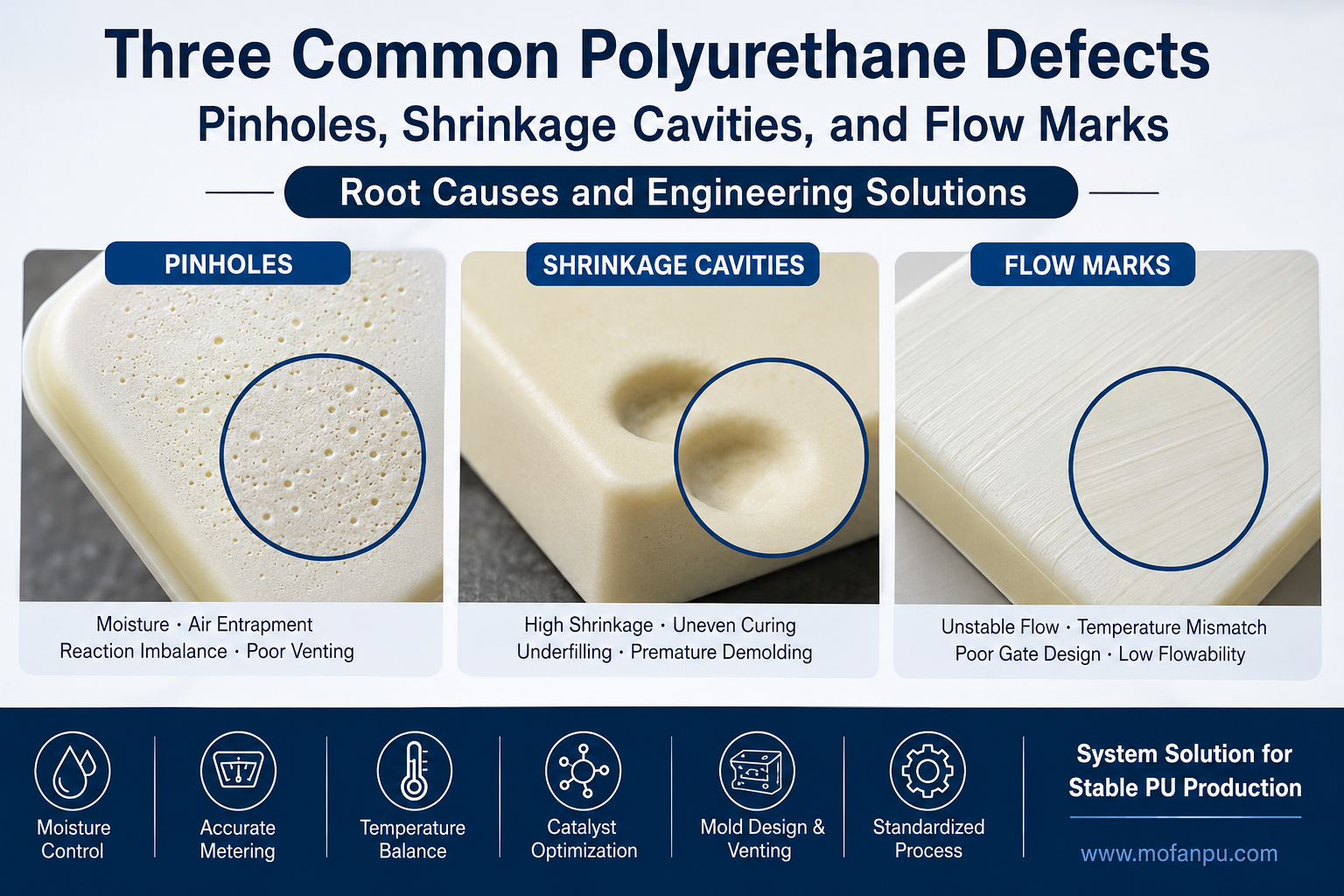

In polyurethane casting and molding processes, pinholes, shrinkage cavities, and flow marks are among the most frequently recurring surface defects in both flexible and rigid polyurethane systems.

Even after repeated adjustments, these issues often reappear, indicating that the root cause is rarely a single operational mistake. Instead, they result from a system-level imbalance involving:

• Raw material moisture control
• Reaction kinetics (foaming vs gelation balance)
• Metering and mixing stability
• Mold venting and filling design
• Process temperature control

For stable production, a properly designed polyurethane formulation system is essential.

Learn more about optimized systems for different applications:
Polyurethane System Solutions

---

1. Pinholes (Micro Voids, Fine Porosity, Through-Holes)

1.1 Root Causes of Recurrence

(1) Moisture Contamination — The Primary Cause

Moisture in polyols, catalysts, silicone surfactants, or additives is the most common cause of pinholes.

Key sources include:

• Raw material hygroscopic absorption
• Condensation in storage tanks
• Isocyanate hydrolysis
• Wet molds or water-containing release agents
• High ambient humidity

Water reacts with isocyanate (NCO) to generate CO₂ gas. If bubbles cannot escape before gelation, pinholes are permanently locked into the structure.

Moisture-sensitive formulations require optimized system design:
Polyurethane System House

---

(2) Air Entrapment During Mixing

• Excessive mixing speed
• High drop height during pouring
• Turbulent mixing head design

These conditions introduce micro-air bubbles that cannot escape in time.

---

(3) Foaming–Gelation Imbalance

• Too fast gelation → bubbles trapped in rigid walls
• Too fast foaming → bubble rupture
• Poor silicone surfactant compatibility → unstable cell structure

Catalyst selection plays a critical role in balancing reaction speed:
Polyurethane Amine Catalysts

---

(4) Mold Venting Defects

• Blocked vent channels
• Poor vent design
• Premature mold closure trapping air

---

1.2 Engineering Solutions

• Improve raw material sealing and moisture monitoring
• Use nitrogen protection in humid environments
• Preheat and dry molds properly
• Optimize mixing energy and reduce air entrainment
• Adjust amine/tin catalyst balance for stable reaction timing
• Improve venting design and mold closing sequence

---

2. Shrinkage Cavities (Sink Marks, Surface Collapse, Edge Depressions)

2.1 Root Causes of Recurrence

(1) Excessive Post-Shrinkage

• Low crosslink density
• Low NCO index
• High foam expansion ratio

Leads to internal contraction after cooling and surface collapse.

---

(2) Uneven Curing and Heat Distribution

• Thick sections cure slower than thin sections
• Localized stress differences
• Density inconsistency across the part

---

(3) Insufficient Filling or Poor Gate Design

• Underfilled cavities
• Poor flow reach in end regions
• Incorrect injection gate placement

---

(4) Premature Demolding

Early demolding leads to structural collapse due to incomplete internal curing.

---

2.2 Engineering Solutions

• Slightly increase NCO index (1.05 → 1.10 range)
• Optimize shot weight and ensure slight overflow
• Balance mold temperature and material temperature
• Extend curing time before demolding
• Improve formulation balance using system-level optimization

System optimization support:
Polyurethane System Solutions

---

3. Flow Marks (Flow Lines, Weld Lines, Streaks, Surface Waves)

3.1 Root Causes of Recurrence

(1) Unstable Filling Flow

• Pump pressure fluctuation
• Metering ratio instability
• Turbulent injection flow

---

(2) Temperature Mismatch

• Low mold temperature causes premature skinning
• Poor fusion of flow fronts
• Temperature fluctuation causes inconsistent defects

---

(3) Poor Gate Design

• Single gate with long flow path
• Multiple flow fronts forming weld lines
• Jetting caused by small gate size

---

(4) Poor Flowability / Release Agent Issues

• Low formulation flowability
• Uneven release agent coating
• Surface contamination blocking fusion

---

3.2 Engineering Solutions

• Stabilize metering and pumping systems
• Maintain consistent mold and material temperature
• Add auxiliary injection points for long cavities
• Improve flowability using formulation adjustment

Improve system flow performance with proper additives:
Flame Retardants & Additive Solutions

---

4. Systematic Troubleshooting Framework

When defects repeatedly occur, use this structured diagnostic method:

Step 1: Environment Control

• Temperature & humidity stability
• Raw material moisture levels
• Storage sealing conditions

Step 2: Metering System Check

• A/B ratio consistency
• Pump pressure stability
• Flow rate fluctuation

Step 3: Reaction System Check

• Material and mold temperature balance
• Catalyst system selection
• Foaming vs gelation timing

Step 4: Mold System Check

• Venting design
• Gate layout
• Release agent uniformity
• Demolding timing

Step 5: Operation Consistency

• Mixing method standardization
• Pouring technique control
• Shot weight accuracy

---

Conclusion

Pinholes, shrinkage cavities, and flow marks are not isolated defects — they are symptoms of system imbalance across formulation, process, and mold design.

Stable polyurethane production requires synchronized control of:

• Raw material quality
• Reaction kinetics
• Catalysis system
• Mold engineering
• Process discipline

For consistent performance and reduced defect rates, a properly designed polyurethane system solution is essential.
